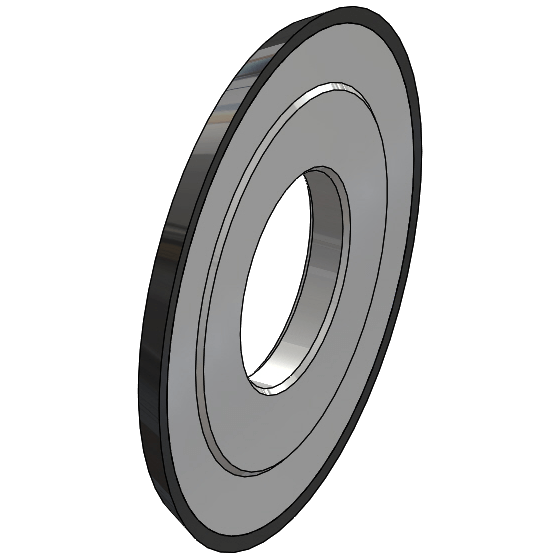

Diamond or CBN wheel 14V1/1V1

Diamond or CBN wheel 14V1/1V1

Back to the products list

Diamond and CBN wheel with resin, polyimide, metals, vitrified and hybrid bond.



Print

Product information

Add references for which you want a devis

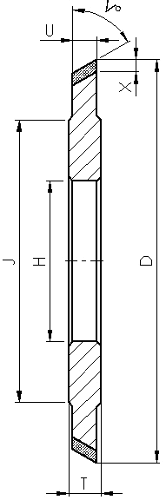

D U X V° H T J
Metal bond Resin bond
50 3 - 4 - 5 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 6 30
50 6 - 8 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 6 30
75 3 - 4 - 5 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 6 45
75 6 - 8 - 10 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 6 45
100 4 - 6 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 8 70
100 8 - 10 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 8 70
125 4 - 6 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 8 100
125 8 - 10 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 8 100
150 4 - 6 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 8 120
150 8 - 10 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 8 120
175 4 - 6 - 8 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 10 140
175 10 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 10 140
200 4 - 6 - 8 - 10 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 12 160
200 12 - 15 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size requirede 12 160
250 4 - 6 - 8 - 10 - 12 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 15 200
250 15 - 20 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 15 200
300 4 - 6 - 8 - 10 - 12 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 15 250
300 15 - 20 1 - 2 - 3 2 - 3 - 4 From 20° to 89° Please state size required 15 250
Other dimensions on request Please state the angle required

Complementary informations

  • Exemple
ORDER EXEMPLE
FEPA Code D U X H Grit size Bond Concentration
1A1 200 20 2 75 D107 Resin/Metal C75
