Range: 70 4901 G002
Internal cooling on request
Standard version without internal cooling

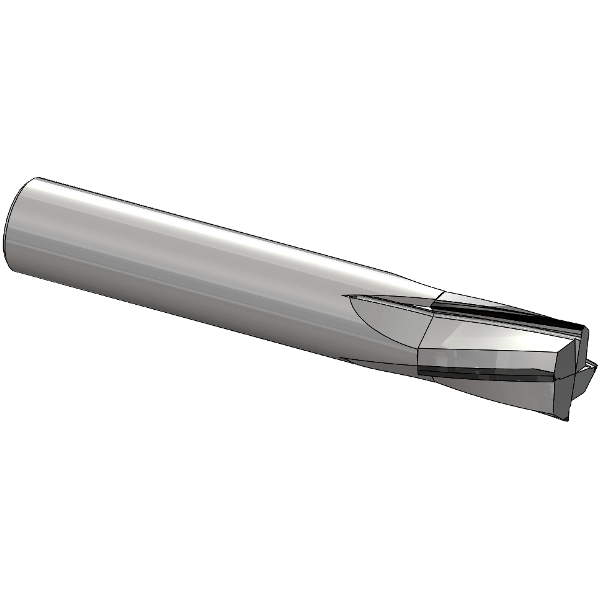

Product information
Add references for which you want a devis

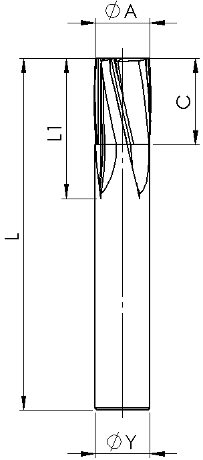

| Order reference metric | Cutter diameter (A) | Cutting length (C) | Shank diameter (Y) | Helix angle | Overall length (L) | Number of flutes (Z) | |
|---|---|---|---|---|---|---|---|
| 70 4901 G010 Ø6X15-Z2 | 6 | 15 | 9 | 15 | 68.5 | 2 | |
| 70 4901 G010 Ø6X15-Z4 | 6 | 15 | 9 | 15 | 68.5 | 4 | |
| 70 4901 G010 Ø8X15-Z2 | 8 | 15 | 8 | 15 | 81 | 2 | |
| 70 4901 G010 Ø8X15-Z4 | 8 | 15 | 8 | 15 | 81 | 4 | |
| 70 4901 G010 Ø10X19-Z2 | 10 | 19 | 10 | 15 | 81 | 2 | |
| 70 4901 G010 Ø10X19-Z4 | 10 | 19 | 10 | 15 | 81 | 4 | |
| 70 4901 G010 Ø12X19-Z4 | 12 | 19 | 12 | 15 | 87.5 | 4 | |
| Other dimensions on request |
| Order reference inch | Cutter diameter (A) | Cutting length (C) | Shank diameter (Y) | Helix angle | Overall length (L) | Number of flutes (Z) | |
|---|---|---|---|---|---|---|---|
| 70 4901 G010 Ø1/4X5/8-Z2 | 1/4" | 5/8" | 1/4" | 15 | 3" | 2 | |
| 70 4901 G010 Ø1/4X5/8-Z4 | 1/4" | 5/8" | 1/4" | 15 | 3" | 4 | |
| 70 4901 G010 Ø3/8X5/8-Z2 | 3/8" | 5/8" | 3/8" | 15 | 3" | 2 | |
| 70 4901 G010 Ø3/8X5/8-Z4 | 3/8" | 5/8" | 3/8" | 15 | 3" | 4 | |
| 70 4901 G010 Ø1/2X3/4-Z2 | 1/2" | 3/4" | 1/2" | 15 | 3" | 2 | |
| 70 4901 G010 Ø1/2X3/4-Z4 | 1/2" | 3/4" | 1/2" | 15 | 3" | 4 | |
| Other dimensions on request |
