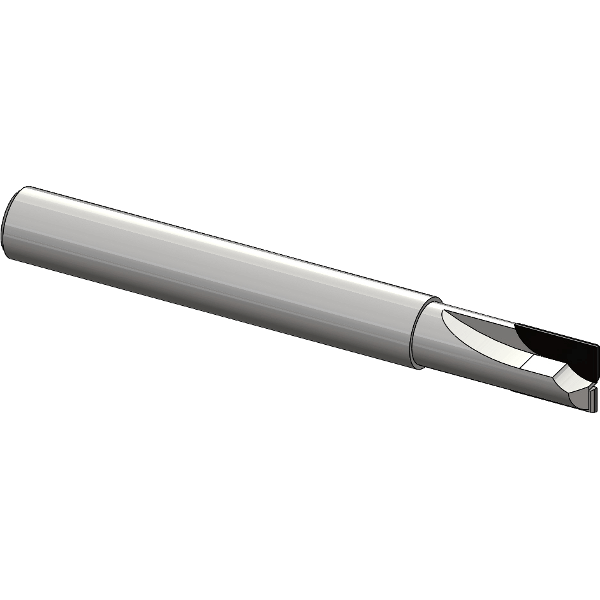

Slot PCD milling cutter type G002

Slot PCD milling cutter type G002

Range: 70 4901 G002

Those PCD cutter can be manufactured in CBN

With coolant feed on request



Print

Product information

Add references for which you want a devis

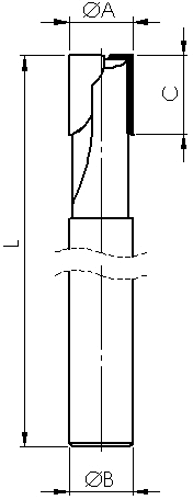

  Order reference Diameter of the cutter A mm Number of flutes Shank diameter B en mm Cutting lip C en mm Total length L en mm Availability
+ Add to quote 70 4901 G002 Ø4 4 Z1 8 10 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø5 5 Z1 8 10 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø6 6 Z2 6 10 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø7 7 Z2 6 10 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø8 8 Z2 8 10 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø9 9 Z2 8 10 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø10 10 Z2 10 15 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø11 11 Z2 10 15 70 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø12 12 Z2 12 15 100 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø13 13 Z2 12 15 100 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø14 14 Z2 14 20 100 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø15 15 Z2 14 20 100 Delivery time: Consult us
+ Add to quote 70 4901 G002 Ø16 16 Z2 16 20 100 Delivery time: Consult us
+ Add to quote Other dimensions on request

Complementary informations

  • PCD Characteristics
  • Applications
  • Cutting parameters information purposes only
Grade Characteristics Applications
36 Well-sintered diamond with high abrasion resistance yet easy to grind
Perfect for wear parts		 Wear parts
35 Fine grain size ideal for applications requiring utra high surface finish
Ideal when WEDM prepared edge is acceptable		 Titanium machining
Low silicon aluminium
6 Ideal for applications requiring sharp cutting and good abrasion resistance Aluminium <8% silicon
Copper
Precious metals
Plastics (eye wear)
Electronics
3 General purpose
Fine surface finishes		 Aluminium <12% silicon
Graphite
Composites
Green ceramics
Copper alloy
5 Longer tool life
Ideal for instances when high abrasion resisance is critical		 Aluminium >12% silicon
Metal matrix composite
Sintered ceramics
Carbide
Bi-metal machining – aluminium/cast
Sintered tungsten carbide 10-16%, Co
31 Highest abrasion resistance
Bi-modal grain structure for increased diamond percentage content		 Fiber glass
Aluminium >14% silicon
Metal matrix composite
Sintered tungsten carbide 10-16%, Co
Materials Operation
Materials Roughing Finishing Milling
Aluminium < 8% Si PCD 06 - PCD 35 PCD 06 - PCD 35 PCD 06 - PCD 35
Aluminium <12% Si PCD 03 - PCD 06 PCD 03 - PCD 06 PCD 03 - PCD 06
Aluminium >12% Si PCD 03 - PCD 05 - PCD 31 PCD 03 - PCD 05 - PCD 31 PCD 03 - PCD 05 - PCD 31
Brass / Copper PCD 03 - PCD 05 - PCD 06 PCD 03 - PCD 05 - PCD 06 PCD 03 - PCD 05 - PCD 06
Plastic PCD 03 - PCD 06 PCD 03 - PCD 06 PCD 03 - PCD 06
Graphite PCD 03 - PCD 05 PCD 03 - PCD 05 PCD 03 - PCD 05
Wearing parts PCD 36 PCD 36 PCD 36
Materials Operation PCD grade Speed rotation velocity m/mm Feed per revolution mm/rev Cutting depth mm
Aluminium alloys 4-8% Si Turning PCD 03 - PCD 06 - PCD 35 900 - 3500 0.1 - 0.4 0.1 - 4.0
Aluminium alloys 4-8% Si Milling PCD 03 - PCD 06 - PCD 35 1000 - 5000 0.1 - 0.3 mm/teeth 0.1 - 3.0
Aluminium alloys 8-12% Si Turning PCD 03 - PCD 05 - PCD 06 - PCD 31 600 - 2400 0.1 - 0.4 0.1 - 4.0
Aluminium alloys 8-12% Si Milling PCD 03 - PCD 05 - PCD 06 - PCD 31 700 - 3000 0.1 - 0.3 mm/teeth 0.1 - 3.0
Aluminium alloys >12% Si Turning PCD 03 - PCD 05 - PCD 31 300 - 700 0.1 - 0.4 0.1 - 4.0
Aluminium alloys >12% Si Milling PCD 03 - PCD 05 - PCD 31 400 - 900 0.1 - 0.3 mm/teeth 0.1 - 3.0
Metal matrix composite Turning/Milling PCD 05 - PCD 31 300 - 600 0.1 - 0.4 0.2 - 1.5
Copper alloys (Copper, Zinc, Brass) Turning/Milling PCD 03 - PCD 06 400 - 1260 0.03 - 0.3 0.05- 2.0
Tungsten carbide 10-16%, Co Turning PCD 05 - PCD 31 50 - 200 0.1 - 0.4 0.1 - 1.0
Tungsten carbide 10-16%, Co Fritté Turning PCD 05 - PCD 31 20 - 40 0.1 - 0.25 0.1 - 1.0
Ceramic Turning PCD 05 - PCD 31 50 - 200 0.1 - 0.2t 0.1 - 1.0
Sintered ceramic Turning PCD 05 - PCD 31 20 - 40 0.1 - 0.2t 0.1 - 0.5
Wood MDF Routing PCD 03 - PCD 06 1000 - 3650 0.1 - 0.4 t0.1 - 4.0
Chipboard wood Sawing PCD 03 - PCD 05 1500 - 4000 0.5 - 6.0t 1.0 - 200
Chipboard wood Routing/Sawing PCD 31 1000 - 4000 0.1 - 0.4t 0.1 - 3.0
Plastics/Composites (Carbone/Graphite) Turning/Milling PCD 03 - PCD 05 - PCD 31 300 - 2000 0.05 - 0.3t 0.1 - 3.0
Plastics/Composites (Glass fibers/Plastics) Turning/Milling PCD 03 - PCD 05 - PCD 31 200 - 1000 0.05 - 0.5 0.1 - 3.0
Plastics/Composites (Glass fibers/Plastics) Turning/Milling PCD 31 300 - 1000 0.1 - 0.4t 0.1 - 3.0
